[DrNip]

Hahaha!!! Don't make me drive down to Texas Jeffro and take the trainin wheels off you myself!

[Jeffro64]

LMAO! I ain't skeered to try it... Just gotta get the time!!

[Kal-EL]

Nip, u submit more benches to the bot today or is it that the forum submissions kicked in some extra points? Ur at 355 now

[DrNip]

It's called just doin the damn thing supes. Nice lil pickup of 75 points. Expect to see me in 400 point land in August.

OK boys and girls with out further a dew here is what I did to get where I got. Pretty simple or at least it seems now. A lil special help from Chuchnit and 3oh6 got me where I needed to go. I was there but not all the way. With their advice I got my fix!

All pics are click-able!

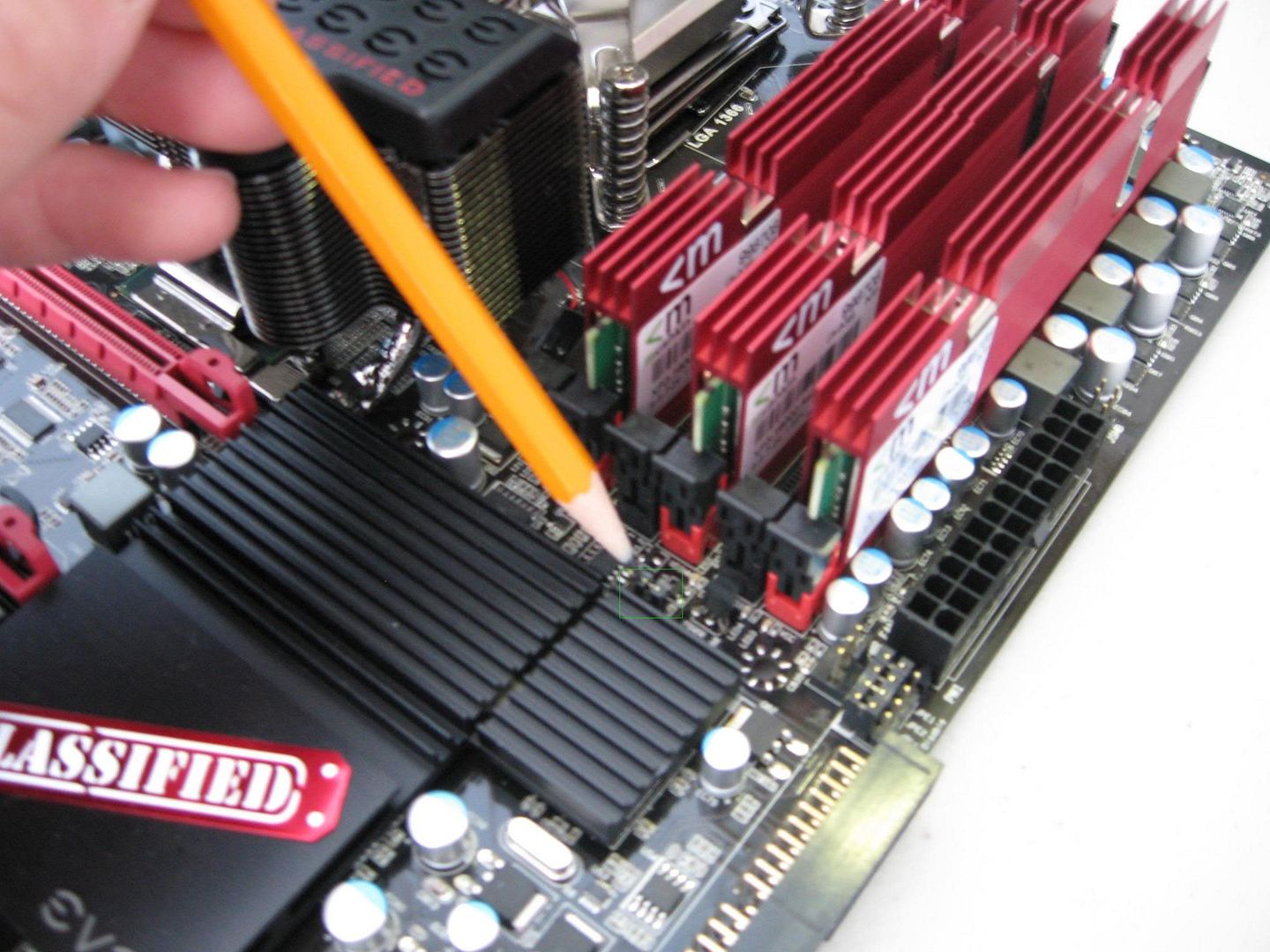

Here is a shot of the jumper I switch to pins 2 & 3 which cured my lonely lil o cold bug. As soon as I flipped the switch my worries were gone...


Here are my BIOS screenshots of the settings I tweaked.

Pay attention to the settings in the left column not the right. I don't have the settings saved but merely changed them for this miniature guide. Also your settings might vary. I recommend you use a multimeter to measure your volts. A setting of 1.65v DIMM nets me 1.7v in Windows.

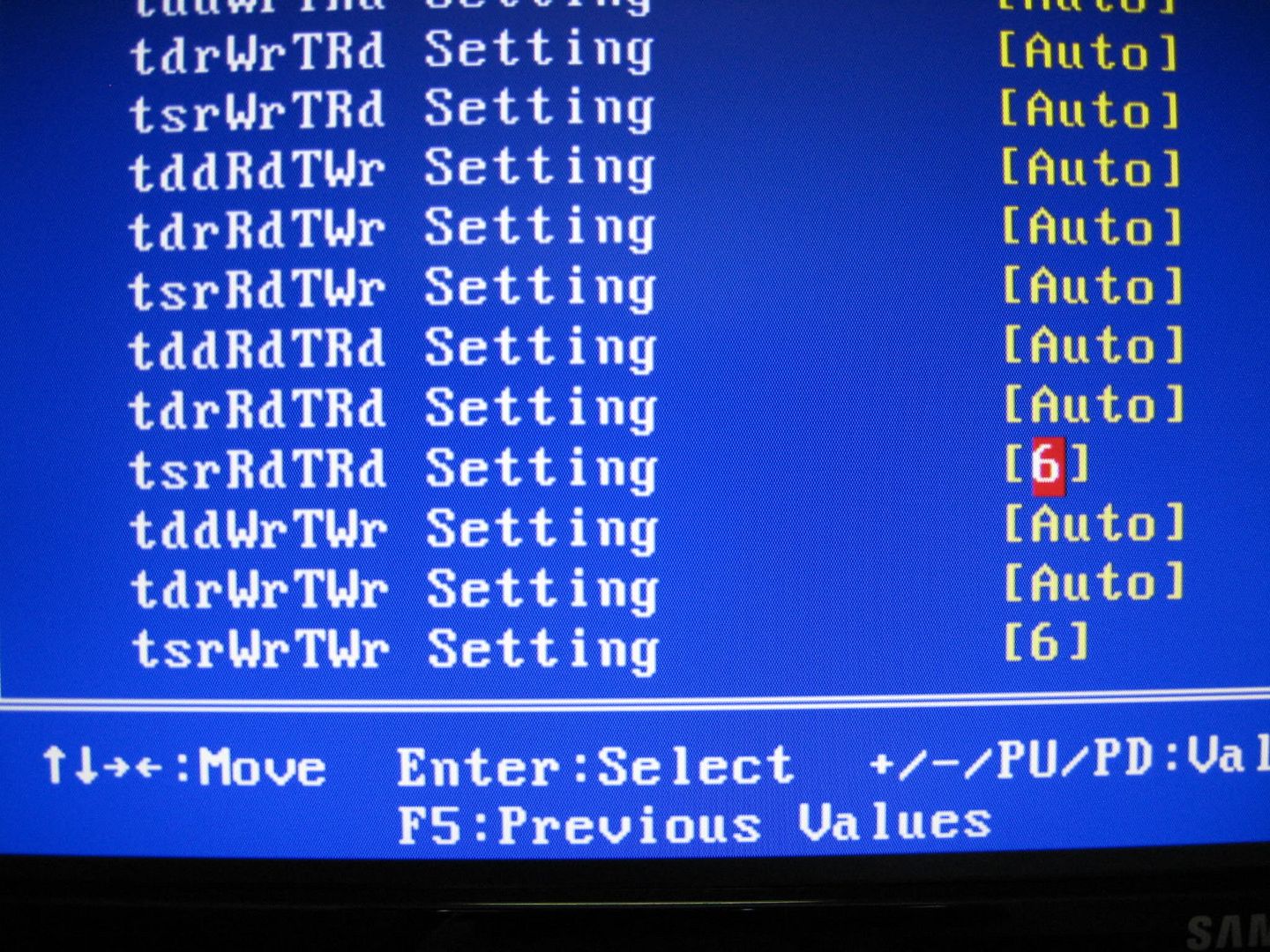

I changed the two settings in the pic from Auto to 6.

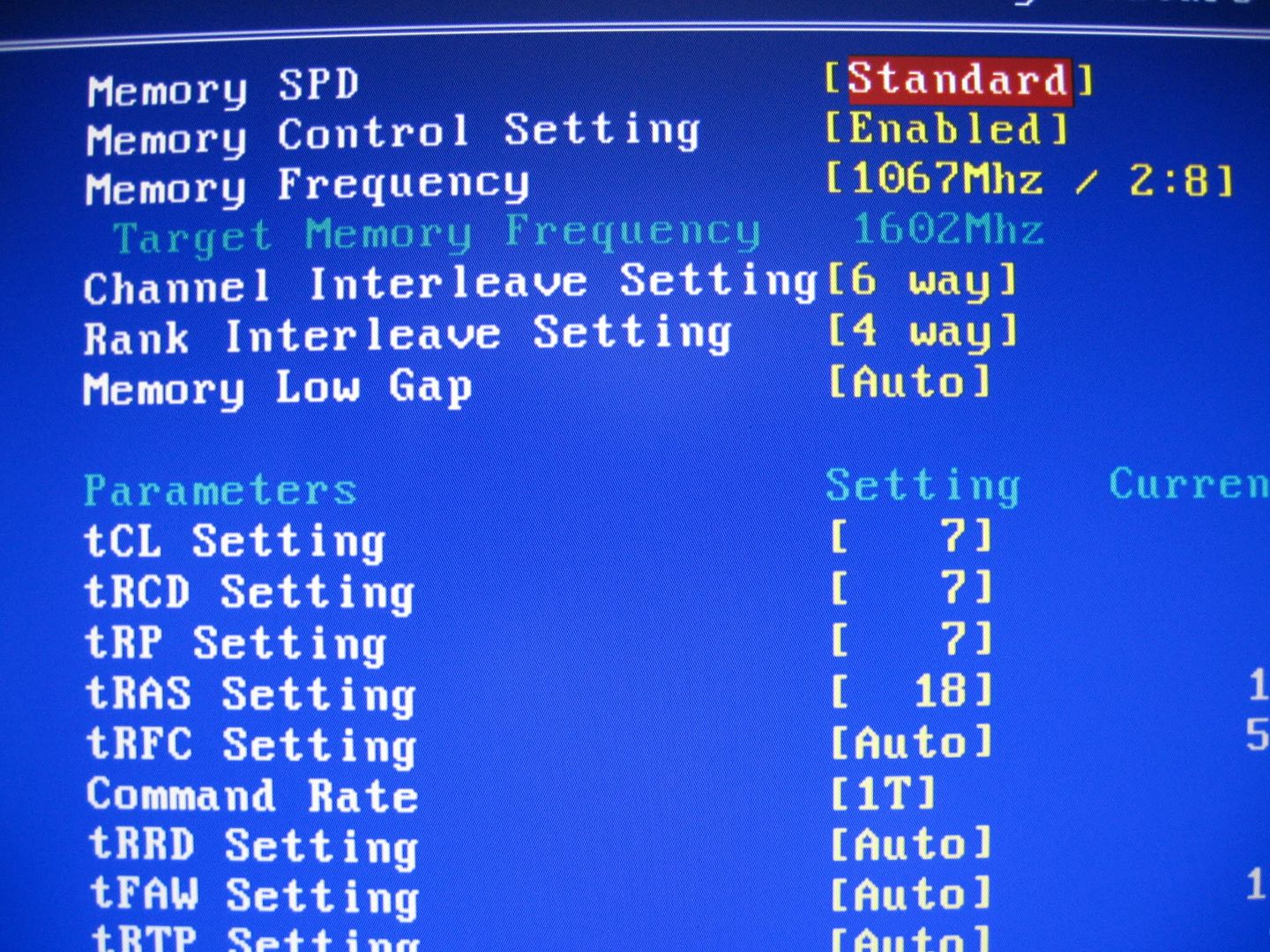

Simple enough. I used various timings but mainly these in the end. Be warned that not all RAM is capable of running these speeds at these timings.


I booted at 220 BCLK and used eleet to get me the rest of my BCLK within Windows.


This last shot I had my QPI Frequency Selection set to 4.8 not Auto. So disregard the Auto setting.


Some benches and what not I had to tweak my VTT or Core volts up more within eleet. Sometimes I ran 115 pcie too. But in a nut shell this is what I used. After the fact I sat around and thought that I might have gotten some more MHz by changing my RAM ratio to 2:6 instead of 2:8. I will be trying this next time.

[punx223]

damn nip... very good work nip. excellent results

[Kal-EL]

Thats what I'm talkin bout, lead teh way buddy

[DrNip]

Thanx guys. Just tryin to help all those in need! More testing to come as I got the itch more than ever now. Makes me want to get back in there and fire up the ol DFI and see what I can do with it again.

[HITandRUN]

Very nice results there and settings! I sure try these next week! cool2

[DrNip]

Well it is official. Ten lbs DICE and 4 hours later and nothing to show for. 1st I tired working on the SuperPi contest. That was a no go so I switched it up to the bot and my 8600gt's. That was also a no go. So I went ahead and tried my 295 and guess what, that was a no go too. I did manage a 355k Aquamark run but BLEEPING cpu-z 1.52 glitched out in the screenshot and showed me with a 20 mult instead of the 21 mult I was running which showed my BCLK incorrect. Didn't notice it until I went to upload it at the bot. These single PCB 295's aren't as good as there dual PCB brothers. They don't overclock as well and softmods don't work on them. I wish I would have known that. Of course it all could be driver related. I need to roll back a driver or two and see.

As of lately I have had more downs than ups on overclocking and hardware purchases. I need a break. Got to get away and get my head clear and come back with a new game plan. I'll be out of the overclocking office for a few days. Goin to get back into some gaming on Aug 18th with Wolfenstein. Maybe that is what I need. I just know somethin has to give.

[Kal-EL]

Originally Posted by DrNip

Well it is official. Ten lbs DICE and 4 hours later and nothing to show for. 1st I tired working on the SuperPi contest. That was a no go so I switched it up to the bot and my 8600gt's. That was also a no go. So I went ahead and tried my 295 and guess what, that was a no go too. I did manage a 355k Aquamark run but BLEEPING cpu-z 1.52 glitched out in the screenshot and showed me with a 20 mult instead of the 21 mult I was running which showed my BCLK incorrect. Didn't notice it until I went to upload it at the bot. These single PCB 295's aren't as good as there dual PCB brothers. They don't overclock as well and softmods don't work on them. I wish I would have known that. Of course it all could be driver related. I need to roll back a driver or two and see.

As of lately I have had more downs than ups on overclocking and hardware purchases. I need a break. Got to get away and get my head clear and come back with a new game plan. I'll be out of the overclocking office for a few days. Goin to get back into some gaming on Aug 18th with Wolfenstein. Maybe that is what I need. I just know somethin has to give.

On top of the increasing competition at the bot, having to deal with hardware dilemas are "SUCKOS" . Take ur break brudder Nip, I'll pick up the slack this week.
