[kikicoco1334]

Thermal Compound

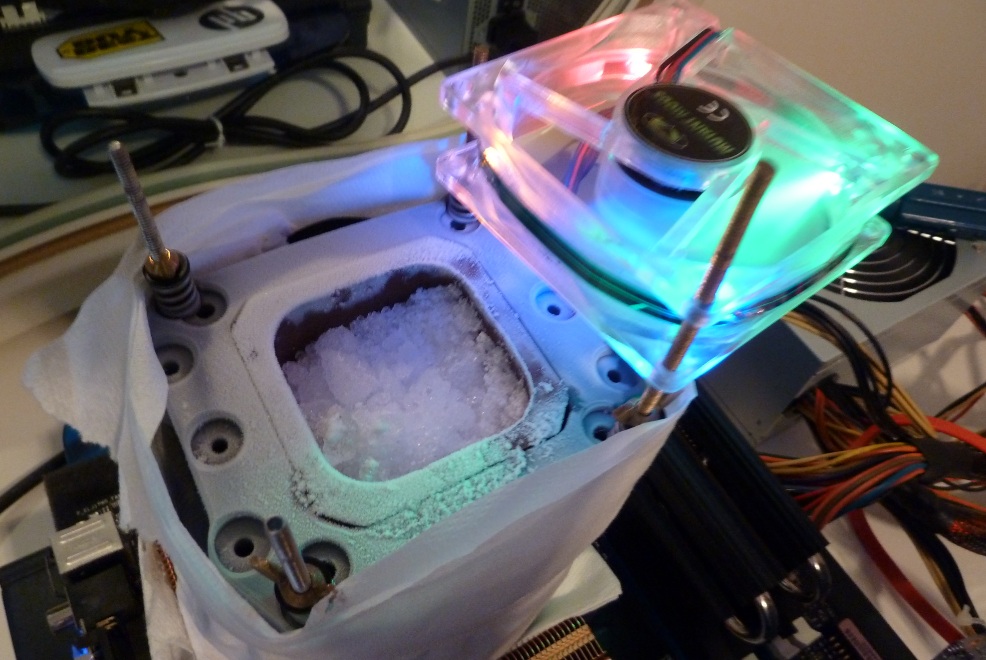

First look at the insulated motherboard


raped in the paper tows


in black and white




last pix

[Hondacity]

i miss that pot :(

oh btw grab a fan and dangle it on one of the long screws...you don't want the cold air freezing up metal and attracting water...

check your mount.....compare thermometer temps and bios temps...

[kikicoco1334]

Originally Posted by Hondacity

i miss that pot :(

oh btw grab a fan and dangle it on one of the long screws...you don't want the cold air freezing up metal and attracting water...

check your mount.....compare thermometer temps and bios temps...

will do will do!

[kikicoco1334]

so i am back!
here is some of my benching after advices taken!
i am still rolling slowly

some how i can't seem get this stupid thing to run stable at 5-6-6-15 @ 2.2V

the ram it self is running at stock 2.2v is that gonna be a prob?
that's like sky high right?

in the attachment is the BIOS setting for this setup..

i ran the 32M just so i know the oc is kinda stable right?

[DrNip]

What gives on the frequency? Only 4ghz on DICE? Better drop the hammer and go with it or else send me that Commando.

[GeorgeStorm]

Is cpu-z reporting the voltage correctly?

[kikicoco1334]

Originally Posted by DrNip

What gives on the frequency? Only 4ghz on DICE?

i have no idea comes to voltage changing at all!

i was trying to post the voltage setting not the temp settings lol

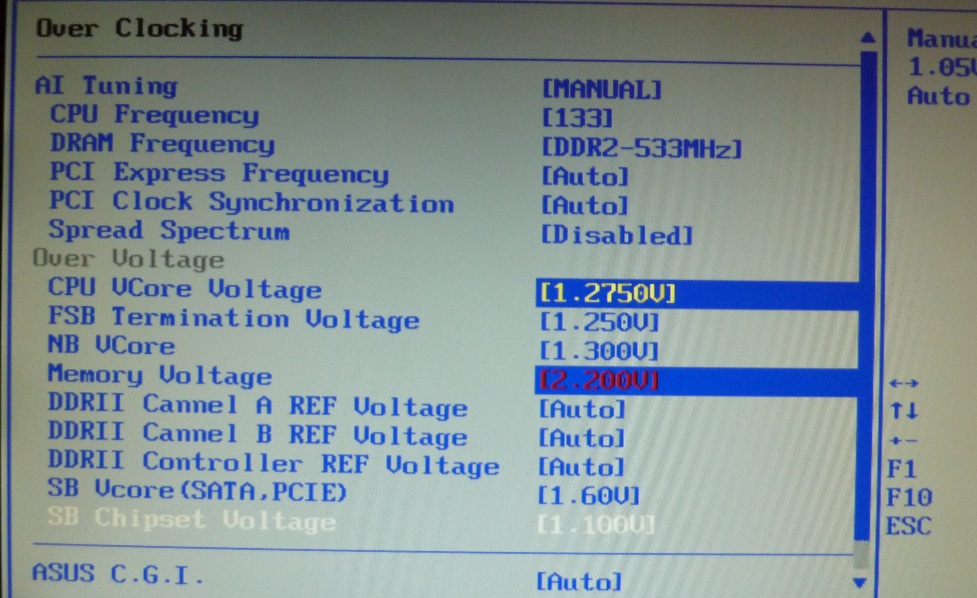

here is my voltage settings
VCore - 1.2750
FSB - 1.250
NB Vcore - 1.300
Memory - 2.200
SB Vcore - 1.60
SB Chipset - 1.100


i didn't really have to play with the voltages at all to get it up to 4G is that good?
cuz i can't get any higher than 4.2 with out increase voltage on the VCore


and here is the pix =) in the attachment

Originally Posted by GeorgeStorm

Is cpu-z reporting the voltage correctly?

not really it's at 1.275

[DOM]

come on kiki wheres the 6GHZ+

[kikicoco1334]

Originally Posted by DOM

come on kiki wheres the 6GHZ+

on my way homie!

[DrNip]

Vcore, FSB and and nb core voltages will be your key voltages to tweak with. Best advice would be strap an air cooler on there and figure it out before you jump into the sub-zero end. That's the way I have to do it and is the way I am doing it again with my current 775 platform as I got spoiled on the core ix's and the ease of overclocking them. Forgot how to overclock a 775!
